Hairline Finish 316 Stainless Steel 4*8 2b/hl/no.1/no.4/8k Sheet Or Plate

By adding Mo element to 316 stainless steel, the corrosion resistance and strength in high temperature has greatly improved. It can resist high temperature from 1200℃ to 1300℃ and it is also can be used under very tough conditions. Application area: Chemical industry, marine structures,...

By adding Mo element to 316 stainless steel, the corrosion resistance and strength in high temperature has greatly improved. It can resist high temperature from 1200℃ to 1300℃ and it is also can be used under very tough conditions.

Hairline Finish 316 Stainless Steel 4*8 2B/HL/NO.1/NO.4/8K Sheet or Plate

Corrosion Resistance


Grade 316 has excellent corrosion resistance when exposed to a range of corrosive environments and media. It is usually regarded as “marine grade” stainless steel but is not resistant to warm sea water. Warm chloride environments can cause pitting and crevice corrosion. Grade 316 is also subject to stress corrosion cracking above around 60°C.


Heat Resistance


316 has good resistance to oxidation in intermittent service to 870°C and in continuous service to 925°C. However, continuous use at 425-860°C is not recommended if corrosion resistance in water is required. In this instance 316L is recommended due to its resistance to carbide precipitation.


Where high strength is required at temperatures above 500°C, grade 316H is recommended.


Fabrication


Fabrication of all stainless steels should be done only with tools dedicated to stainless steel materials. Tooling and work surfaces must be thoroughly cleaned before use. These precautions are necessary to avoid cross contamination of stainless steel by easily corroded metals that may discolour the surface of the fabricated product.


Cold Working


Grade 316 is readily brake or roll formed into a variety of parts. It is also suited to stamping, heading and drawing but post work annealing is recommended to relieve internal stresses.


Cold working will increase both strength and hardness of 316 stainless steel.


Hot Working


All common hot working processes can be performed on 316 stainless steel. Hot working should be avoided below 927°C. The ideal temperature range for hot working is 1149-1260°C. Post-work annealing is recommended to ensure optimum corrosion resistance.


Machinability


316 stainless steel has good machinability. Machining can be enhanced using the following rules:





~ Cutting edges must be kept sharp. Dull edges cause excess work hardening.


~ Cuts should be light but deep enough to prevent work hardening by riding on the surface of the material.


~ Chip breakers should be employed to assist in ensuring swarf remains clear of the work


~ Low thermal conductivity of austenitic alloys results in heat concentrating at the cutting edges.  This means coolants and lubricants are necessary and must be used in large quantities.


Heat Treatment


316 stainless steel cannot be hardened by heat treatment.


Solution treatment or annealing can be done by rapid cooling after heating to 1010-1120°C.


Weldability


Fusion welding performance for 316 stainless steel is excellent both with and without fillers. Recommended filler rods and electrodes for 316 and 316L are the same as the base metal, 316 and 316L respectively. Heavy welded sections may require post-weld annealing. Grade 316Ti may be used as an alternative to 316 in heavy section welds.


Oxyacetylene welding has not been found to be successful for joining of 316 stainless steel.



316 Stainless Steel

316 Stainless Steel - used for food and surgical stainless steel. Also known as marine grade stainless steel due to its increased resistance to chloride corrosion compared to type 304. 316L is an extra low carbon grade of 316, generally used in stainless steel watches. Its resistance to chloride attack means it is often selected for use in marine atmospheres. 316Ti includes titanium for heat resistance, therefore it is used in flexible chimney liners.


316 stainless steel is a molybdenum-bearing grade. This addition gives the better overall corrosion resistance properties than type 304 and higher creep strength at elevated temperatures.


Application area:

Chemical industry, marine structures, fertilizer production,heat exchanger, food industry and many other areas.

Chemical composition(WT%)

(C) :≤0.08

(Si) :≤1.00

(Mn) :≤2.00

(Cr) :16.0 to 18.5

(P) :≤0.035

(S) :≤0.030

(Ni) : 10.0 to 14.0

(Mo): 2.0 to 3.0



physical property

tensile strength:≥520MPa

Yield strength:≥205MPa

Elongation:more than 40%


Corrosion resistant

Durable

240 grit polished with a silicon belt

Great for catering applications

Also known as 316

Non magnetisable

High corrosion resistance

Grade 316 has excellent corrosion resistance and good formability. Grade 316 is non-magnetisable.


Material type: Stainless Steel

Form: Sheet

Size: 1.2mm thick

Grade: 316

Surface: 240 Grit silicon

Production method: Cold Rolled

Cutting tolerance: +/-0.5mm

Manufacturing Standard: EN10088-2

Chemical designation: X2CrNiMo17-12-2

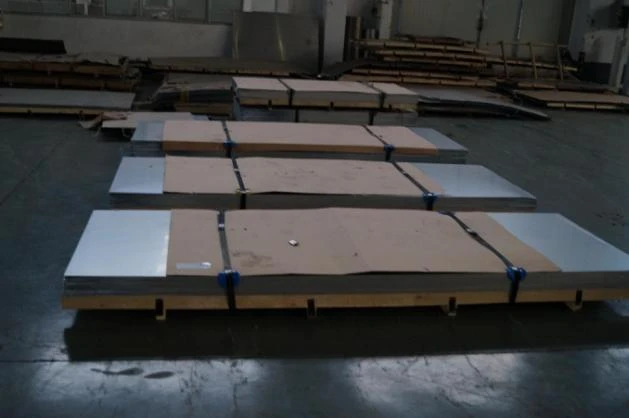

The normal size of 316 stainless steel sheet is 1000mmx2000mm, 1219mmx2438mm, 1500mmx6000mm,1800mmx6000mm, thickness range from 0.3mm to 12mm are all ready is stock.

Usually, it only takes 3 working days for us to make delivery if the products are ready in stock.

Of course, unusual size can also be customized according your request.


316/316L Stainless Steel


JiangHeHai Stainless inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.



FAQ:

The future of stainless steel

Since stainless steel already has many desirable properties required by building materials, it is unique in metals and continues to develop.In order to make stainless steel perform better in the traditional application, the existing types is being improving. In order to meet the stringent requirements of advanced building applications, the new stainless steel in being developing.Due to the continuous improvement of production efficiency and continuous improvement of quality, stainless steel has become one of the most cost-effective materials chosen by architects. Stainless steel is one of the best building materials in the world because of its collection, appearance and use.


316 HL surface stainless steel sheet




316 2B surface stainless steel sheet




316 8K surface stainless steel sheet




316 NO.1 surface stainless steel sheet
