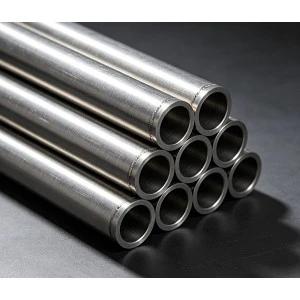

Round Welded Stainless Steel Tube

Round Welded Stainless Steel Tube

Round Welded Stainless Steel Tubes are manufactured from stainless steel strips or coils through roll forming, automatic welding, weld bead treatment, solution annealing, pickling, passivation, and precision sizing.

  • Product Introduction

Product Overview



Round Welded Stainless Steel Tubes are manufactured from stainless steel strips or coils through roll forming, automatic welding, weld bead treatment, solution annealing, pickling, passivation, and precision sizing.



With modern TIG/Laser welding technology and full solution annealing, today's welded stainless steel tubes offer mechanical properties and corrosion resistance comparable to seamless tubes for most industrial applications.



Product Specifications



Item

Specification

Product

Round Welded Stainless Steel Tube

Outer Diameter (OD)

6mm – 630mm

Wall Thickness (WT)

0.5mm – 20mm

Length

Up to 12m (Custom lengths available)

Standards

ASTM A249, ASTM A269, ASTM A270, ASTM A312, ASTM A554, EN10217-7

Material Grades

201, 202, 304, 304L, 316, 316L, 321, 310S, 2205, 2507, 904L

Surface Finishes

AP, BA, 180#, 240#, 320#, 400#, 600#, Hairline

Tube Ends

Plain End, Beveled End

Welding Process

TIG Welded / Laser Welded

Minimum Order Quantity

Negotiable



Key Features & Advantages



Excellent corrosion resistance
High dimensional accuracy
Uniform and reliable weld seam
Smooth internal and external surface
High mechanical strength
Excellent weldability and machinability
Outstanding high-temperature performance
Long service life
Cost-effective alternative to seamless tubes
Mirror polished finish available



Surface Finish Options



Finish Type

Description & Characteristics

AP (Annealed & Pickled)

Matte industrial finish, chemically treated for corrosion resistance

BA (Bright Annealed)

Controlled atmosphere heat-treated, reflective and bright surface

Satin Finish (No. 4)

Uniform fine abrasive grit lines, smooth and decorative

Hairline

Long, continuous parallel polishing lines for architectural aesthetics

Mirror Polish (600 Grit)

Highly reflective, ultra-smooth surface for sanitary and decorative use



Target Application Industries



Food Processing Industry

Beverage Equipment Manufacturing

Pharmaceutical and Biotechnology

Chemical and Petrochemical Plants

Heat Exchanger and Condenser Systems

Oil and Gas Exploration and Transport

Automotive Exhaust and Structural Components

General Mechanical Engineering

Pressure Vessel Manufacturing

Modern Architecture and Interior Decoration

Industrial and Municipal Water Treatment

Dairy and Beverage Processing Equipment

Pulp and Paper Mill Infrastructure

Marine Engineering and Offshore Structures



Comprehensive Quality Inspection



Every production batch undergoes rigorous testing and quality control protocols to ensure compliance with international specifications:

PMI (Positive Material Identification) Testing
Hydrostatic Testing
Eddy Current Testing
Ultrasonic Testing
X-ray Inspection of Welds
Chemical Composition Analysis
Mechanical Tensile and Hardness Testing
Internal and External Surface Inspection
Dimensional Accuracy Measurement
Spectrometer



Secure Packaging & Logistics



01/

Plastic Caps for Tube End Protection

02/

Waterproof Wrapping Materials

03/

PVC Protective Film Coating

04/

Heavy-Duty Woven Bags

05/

Fumigated Wooden Cases and Crates

06/

Steel Frame Support for Heavy Bundles

07/

Export-Worthy Seaworthy Packaging Solutions

08/

Fully Customized Packaging Options Available



FAQ



Q: What is the difference between welded and seamless stainless steel tubes?

A: Welded stainless steel tubes are manufactured from formed strips or coils joined by automatic welding and subsequently solution annealed, making them highly cost-effective and dimensionally precise. Seamless tubes are extruded from solid billets without a longitudinal weld seam, often preferred for extremely high-pressure containment applications, whereas modern welded tubes fully satisfy most structural, mechanical, and fluid-transport requirements at a lower cost.

Q: Are welded stainless steel tubes suitable for high-pressure applications?

A: Yes, modern welded stainless steel tubes produced with high-frequency TIG or laser welding, followed by automated online solution annealing and strict eddy current or hydrostatic testing, achieve exceptional structural integrity capable of safely handling high-pressure fluid and gas transmission systems.

Q: Which stainless steel grade is best for marine environments?

A: Grades 316 and 316L are standard choices for marine environments due to the addition of molybdenum, which offers superior resistance to pitting and crevice corrosion caused by chlorides and saltwater. For extreme marine structures and offshore engineering, duplex grades such as 2205 or super duplex 2507 provide even higher mechanical strength and localized corrosion resistance.

Q: Can you customize tube dimensions and special lengths?

A: We provide comprehensive custom manufacturing services capable of producing specific outer diameters, wall thicknesses, and precise cut lengths tailored to unique project engineering requirements, along with specialized grade variations and surface finishes.

Q: What surface finishes are available for selection?

A: Our standard and specialized surface options include Annealed and Pickled, Bright Annealed, Satin, Hairline finishes, and high-gloss mirror polishes ranging up to 600 grit, ensuring suitability for both industrial fluid systems and architectural decorative applications.

Q: Do you provide Mill Test Certificates with shipments?

A: Every order is dispatched alongside a comprehensive Mill Test Certificate conforming to EN 10204 3.1, detailing exact chemical composition, mechanical properties, dimensions, and testing results to ensure complete quality traceability.

Q: What inspection methods are performed during production?

A: Our rigorous quality assurance protocol includes positive material identification, automated eddy current testing, hydrostatic pressure tests, ultrasonic weld examinations, dimensional verifications, and mechanical property testing conducted by certified technicians.
